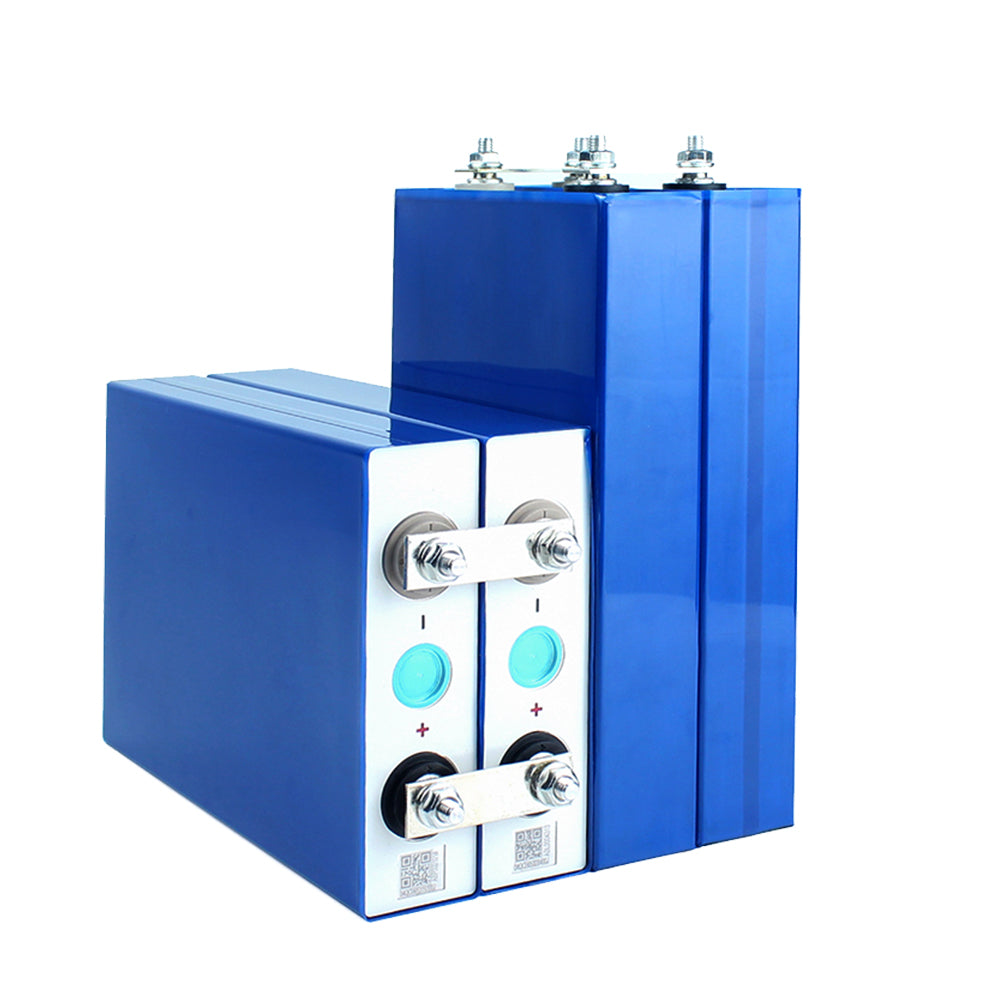

EVE 105AH LiFePO4 Battery 3.2V Rated Max Charge Voltage 3.65V

EVE 105AH LiFePO4 Battery 3.2V Rated Max Charge Voltage 3.65V

Regular price $180.00
Regular price $252.00 Sale price $180.00
Sale Sold out
Shipping calculated at checkout.
尺寸

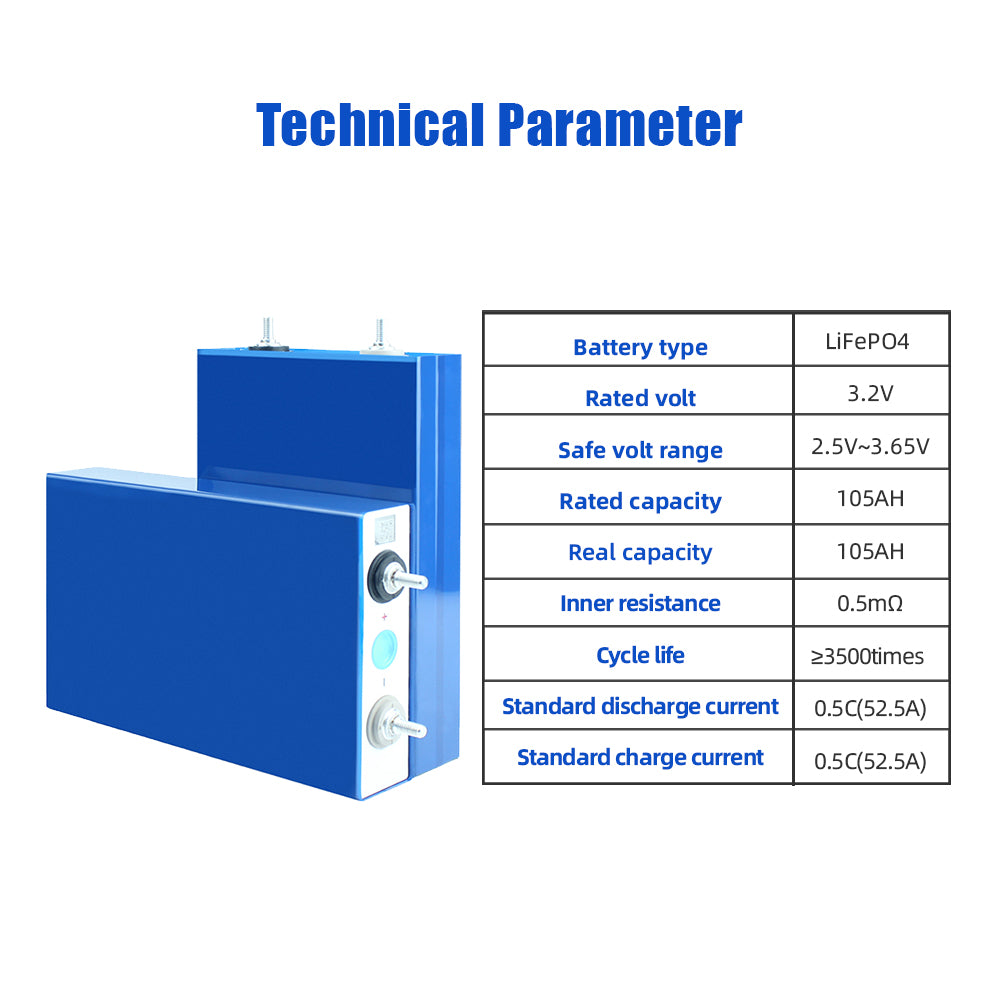

Product specification

Nominal Voltage: 3.2V
Nominal Capacity: 105Ah
Internal resistance: ≤0.7mΩ
Charging cut-off voltage: 3.65V
Discharge cut-off voltage: 2.5V

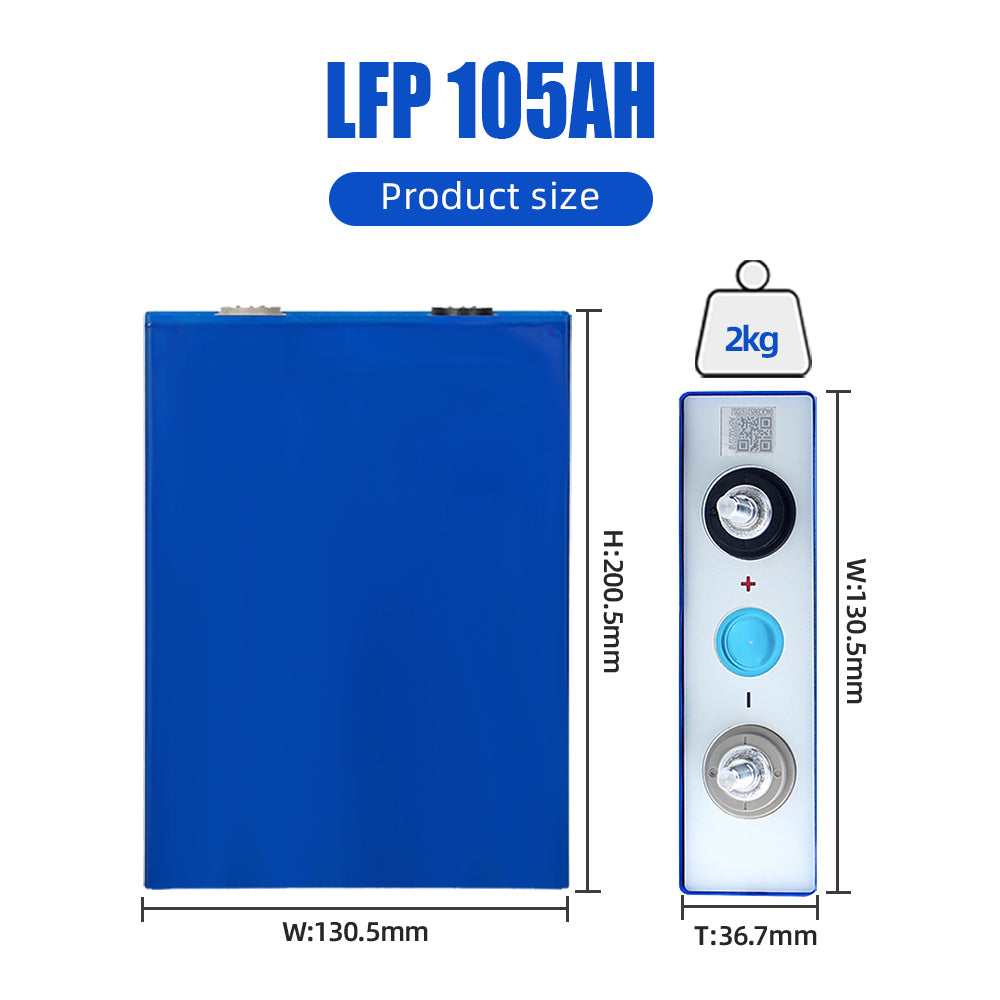

Battery Dimension (Not include the studs):
Height: 200.50 mm ±0.50 mm
Length: 130.30 mm ±0.50 mm
Thickness: 36.35 mm ±0.50 mm
Center distance of pole: 67 mm ±1 mm
Battery Weight: 1980 g ±60 g
Standard charge: 0.5C
Standard discharge: 0.5C
Max discharge current: 3C
Charging Temperature: 0~60 ℃
Discharge temperature: -20~60 ℃
Cycle life: 4000 Cycles, Capacity Retention ≥ 80 % (25℃ ± 2℃ @ 0.5C / 0.5C cycle)
