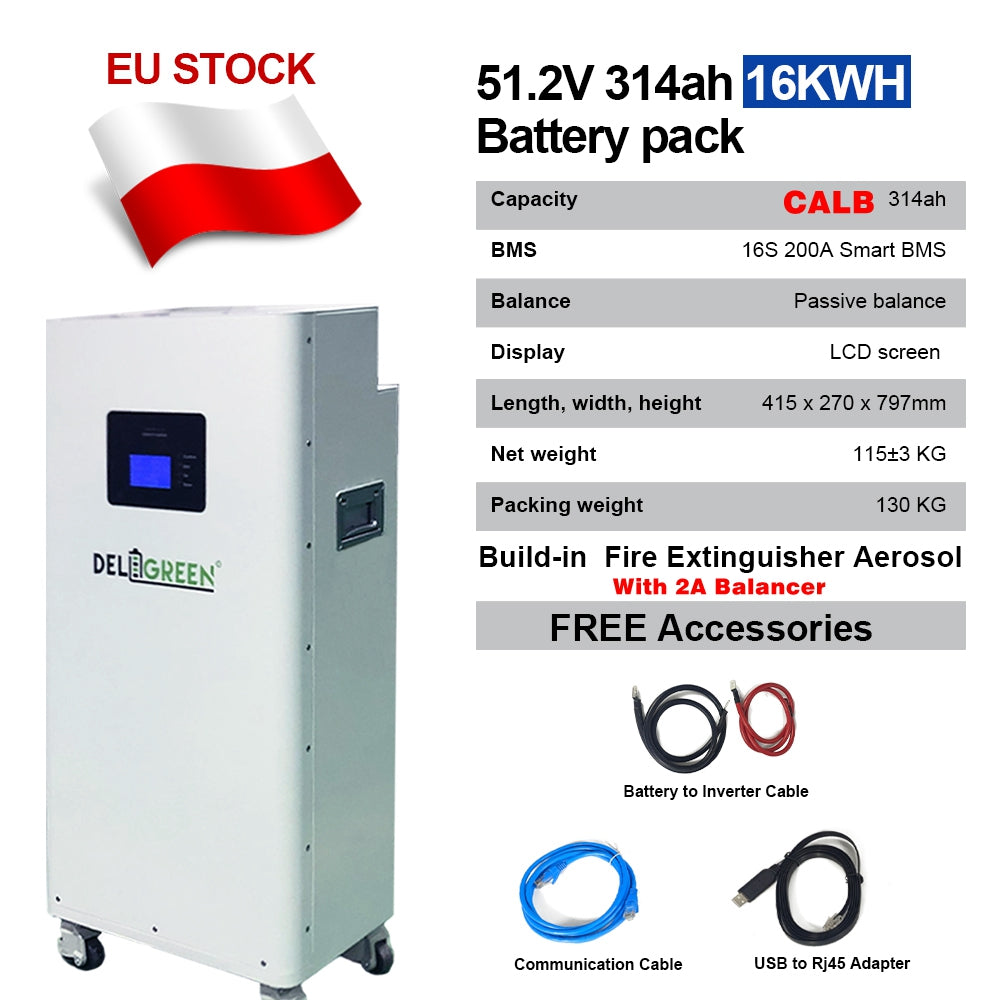

EU Stock Completely 48V 314AH Battery Pack 16kWh System 2A Active Balancer Heating Pad

We use CALB 314Ah grade A+ cells in our battery packs. Prior to assembling the battery pack, each cell undergoes rigorous testing and matching to ensure they have the same capacity, voltage, and internal resistance.

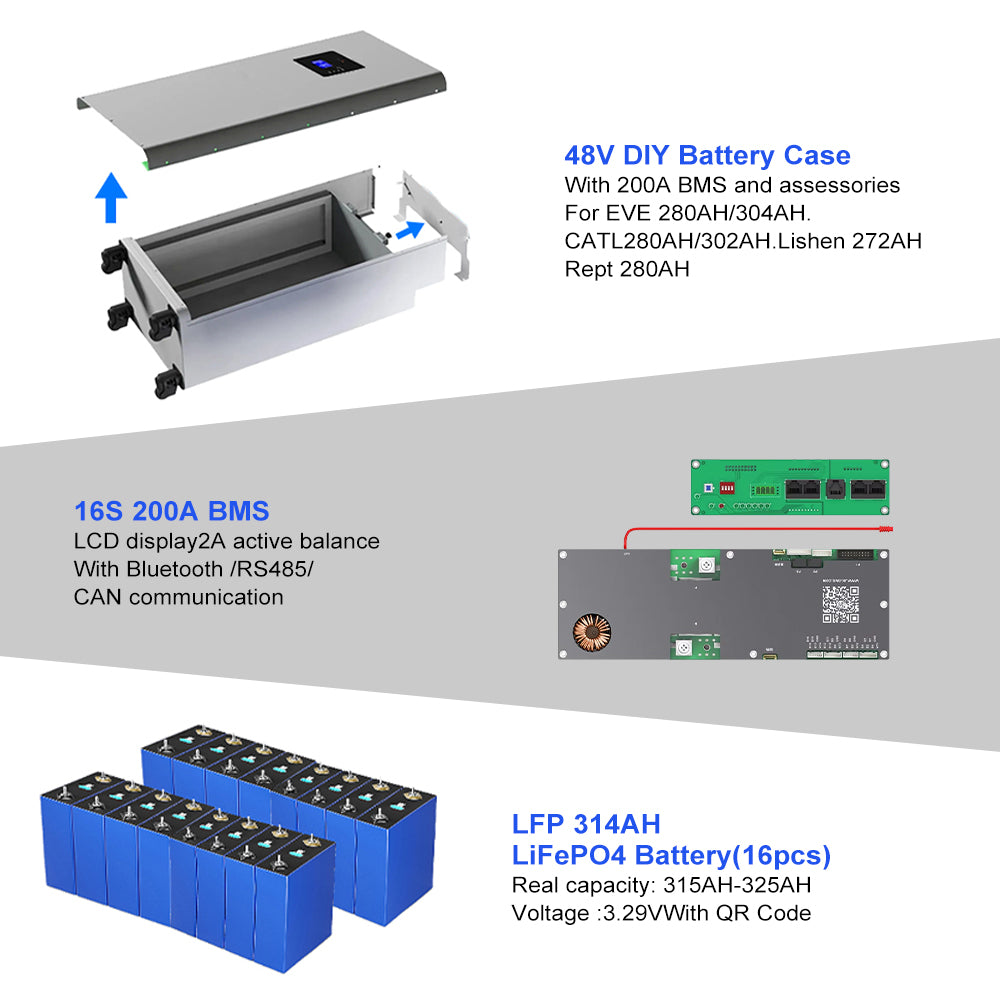

When constructing a pre - assembled battery pack, three key components are of utmost importance: the battery cells, the Battery Management System (BMS), and the accessories.

Parameter	Specification
Rated Energy (kWh)	16kWh
Configuration	IP 16S
Nominal Voltage (V)	51.2 V
Working Voltage Range (V)	42 V ~ 58.4 V
Nominal Capacity (Ah)	314 Ah
Rated Charge/Discharge Current (A)	150 A (Charge) / 200 A (Discharge) @ 25±2°C
Maximum Continuous Charge Current (A)	200 A @ 25±2°C
Maximum Continuous Discharge Current (A)	200 A @ 25±2°C
Operating Temperature (°C)	Charge: 0 ~ 40°C Discharge: -20 ~ 60°C
Humidity Range (%)	5% ~ 95%
Altitude Limit (m)	0 ~ 3000 m
Weight (kg)	132kg
Dimensions (mm)	797 × 415 × 270 mm(15-16kwh) 583× 500× 263mm(17wh)
Storage Temperature/Humidity	Within 1 month: -10°C ~ 35°C Within 3 months: 25±2°C, 65%±20% RH
Cycle Life	8000 cycles @ 25°C, 50A charge/discharge current, 80% DOD
IP Rating	IP20
Communication Interface	CAN & RS485
