Battery DIY Kits

16Kwh 51.2V 314AH Complete LiFePO4 Battery Pack with Fire Extinguisher

16Kwh 51.2V 314AH Complete LiFePO4 Battery Pack with Fire Extinguisher

$1,942.50
$2,187.35 $1,942.50
Sale Sold out
Shipping calculated at checkout.

Complete Pack 51.2V 314AH LiFePO4 Battery Pack with JK Smart BMS

  1. High Energy Capacity: With a capacity of EVE 314AH, the battery pack provides a long-lasting power supply, making it ideal for applications requiring extended runtime, such as solar energy storage, electric vehicles, or off-grid systems.

  2. Plug and Play:  Ready to Use

Configuration            1P16S
Nominal Voltage              51.2V
Nominal Capacity (Ah) 280Ah @ 0.5C discharge current, 25±2℃
Nominal Power (Wh) 14.3kWh
Dimension (mm)  817×412×267mm
Weight (kg) DIYBOX=28.5KG
DIYBOX with cells=112±5kg
Discharge Cut-off Voltage (V） 41.6V
Charge Voltage (V) 57.6V
Continuous Charge
Discharge Current (A)		 140A @ 25±2℃ (Recommended)
 200A @ 25±2℃ (Max Standard)
Working Temperature Charge: 0-50℃
Discharge: -10-50℃
Storage: -20-55℃
SOC Range 5%-100%
Recommended SOC Range 15%-95%

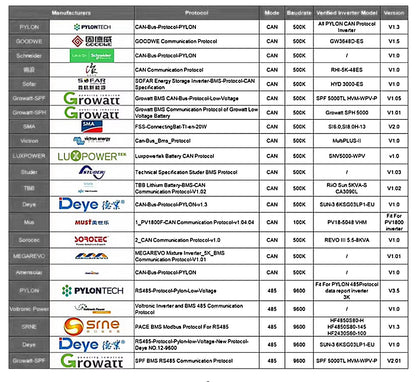

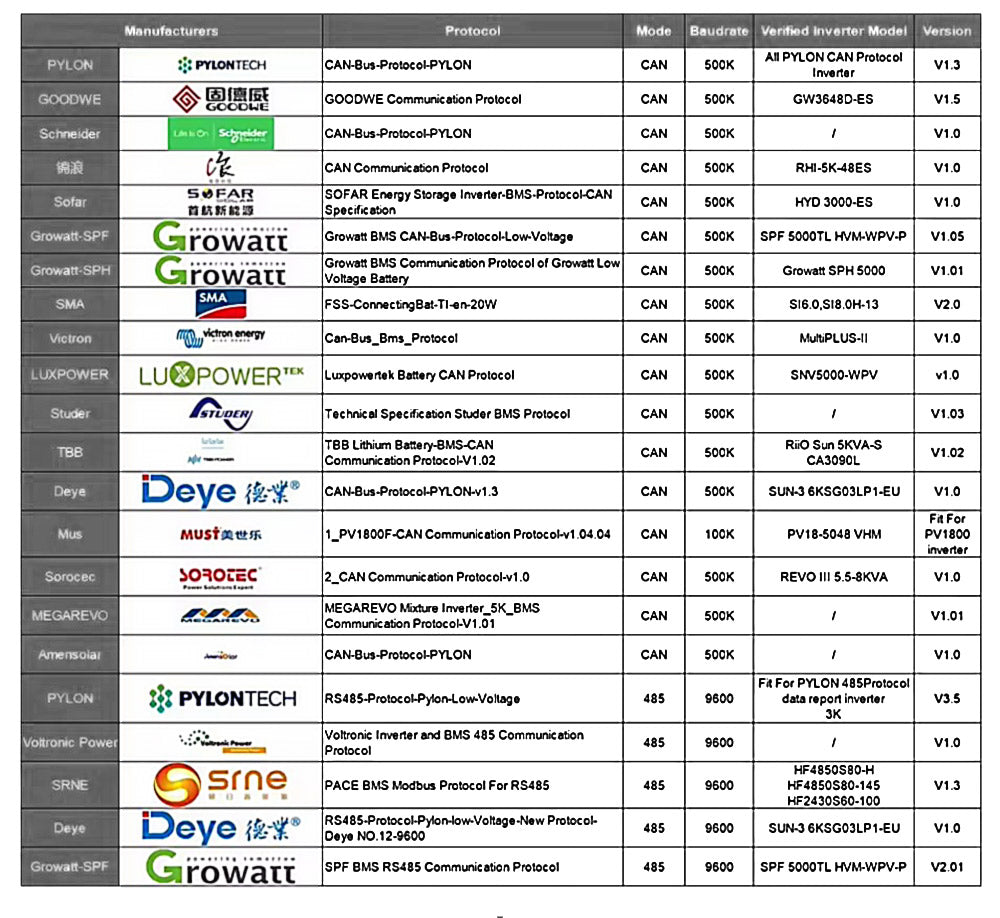

Communication Interface  BT/ CAN / RS485
Humidity 10%-85%
IP Level  IP20

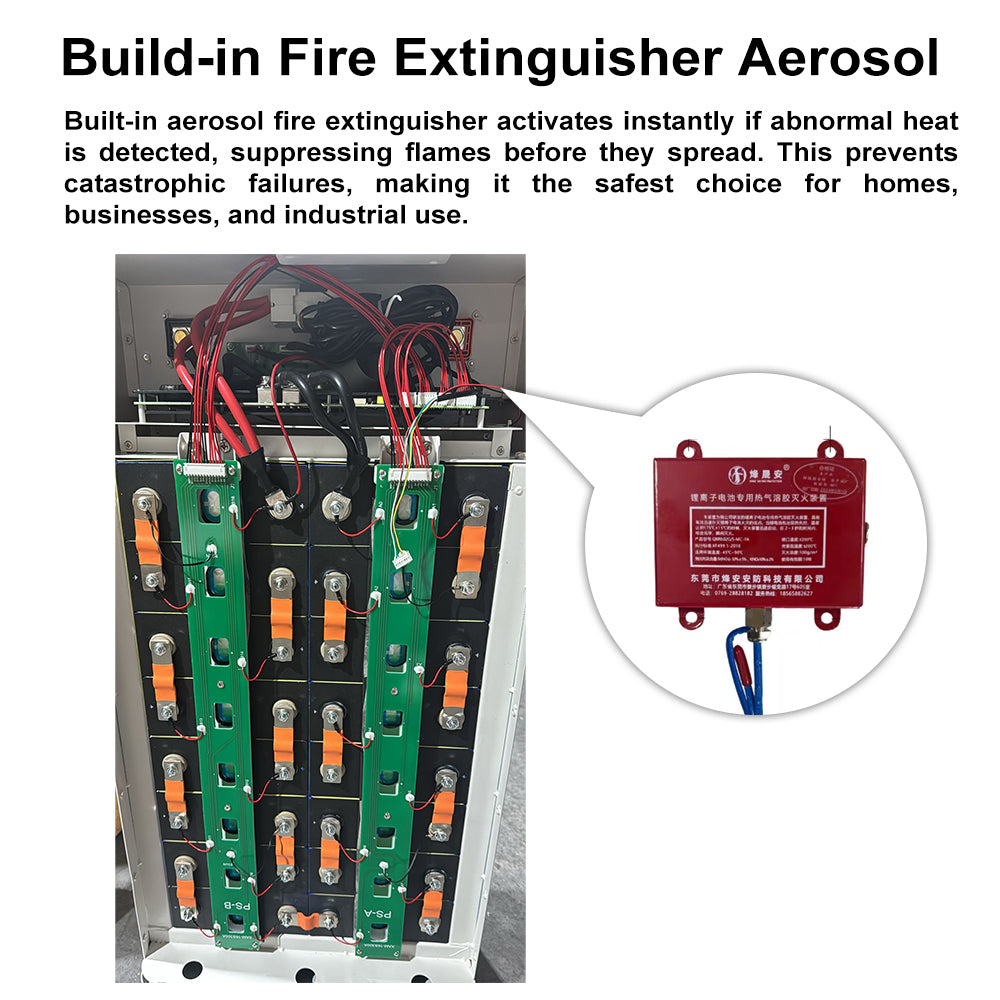

Build-in Fire Extinguisher Aerosol

Built-in aerosol fire extinguisher activates instantly if abnormal heat is detected, suppressing flames before they spread. This prevents catastrophic failures, making it the safest choice for homes, businesses, and industrial use.

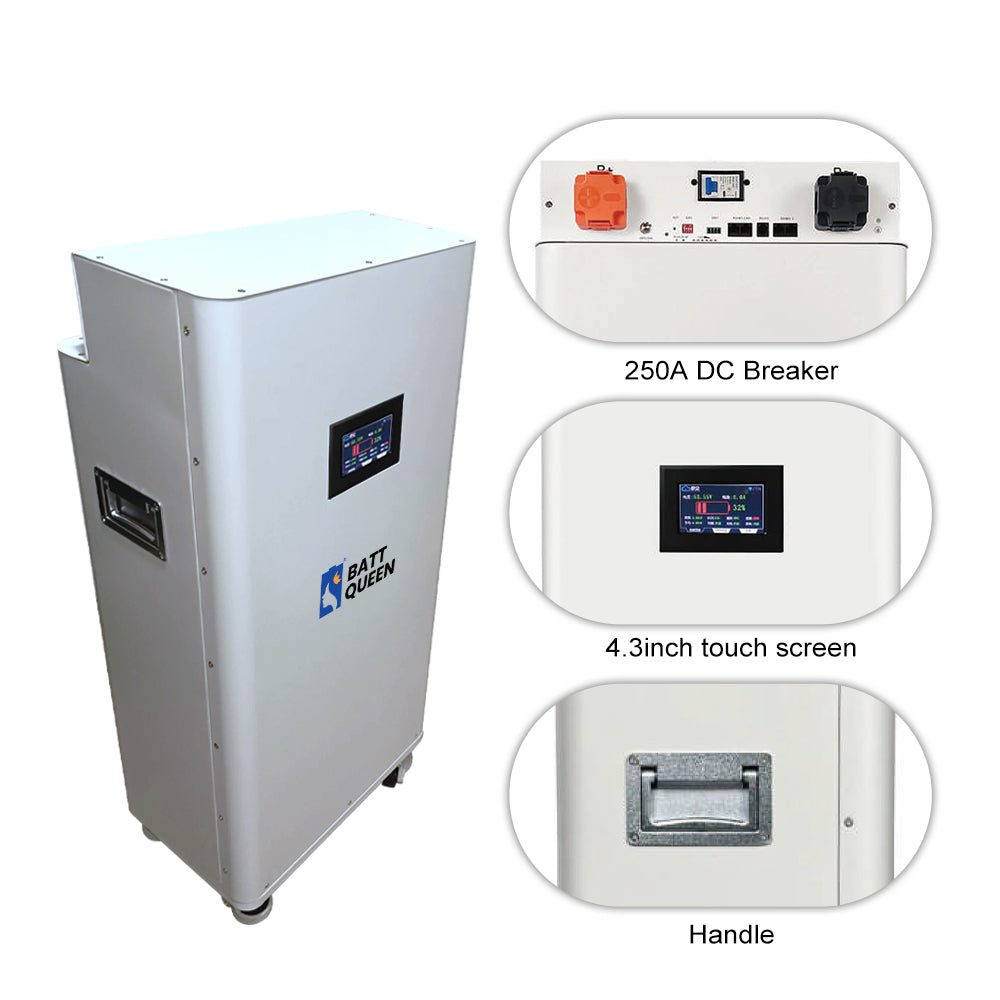

  • Intelligent Display: Integrated screen for real-time monitoring and control.
  • User-Friendly Design: Streamlined interface for seamless operation.
  • Safety First: Circuit breaker for overload protection.
  • Diagnostic Port: Dry contact (DRY) and analog signal (ADS) inputs.
  • Communication Ports:  RS485 CAN
  • Power Control: Orange ON/OFF switch for quick access.




  • Enhanced Battery Life: Through cell balancing and temperature management, the BMS helps to prolong the lifespan of your battery pack, reducing the need for frequent battery replacements and saving costs in the long run.
  • High - Performance Operation: The high - current charge and discharge capabilities, along with reliable communication interfaces, ensure that your power system can operate at its optimal level, whether in continuous or intermittent use.
  • Flexibility: Its compatibility with multiple battery types and support for a wide range of battery string configurations make it suitable for a variety of applications, from small - scale renewable energy systems to large - scale industrial power solutions.
  • Easy Monitoring and Control: The multiple communication options allow for convenient remote or local monitoring and control of the battery pack, enabling you to keep track of its status and make timely adjustments.
