16Kwh 51.2V 320AH DIY LiFePO4 Battery Pack with JK Smart BMS

16Kwh 51.2V 320AH DIY LiFePO4 Battery Pack with JK Smart BMS

$1,780.02
$1,780.02
Sale Sold out
Shipping calculated at checkout.
EU Stock

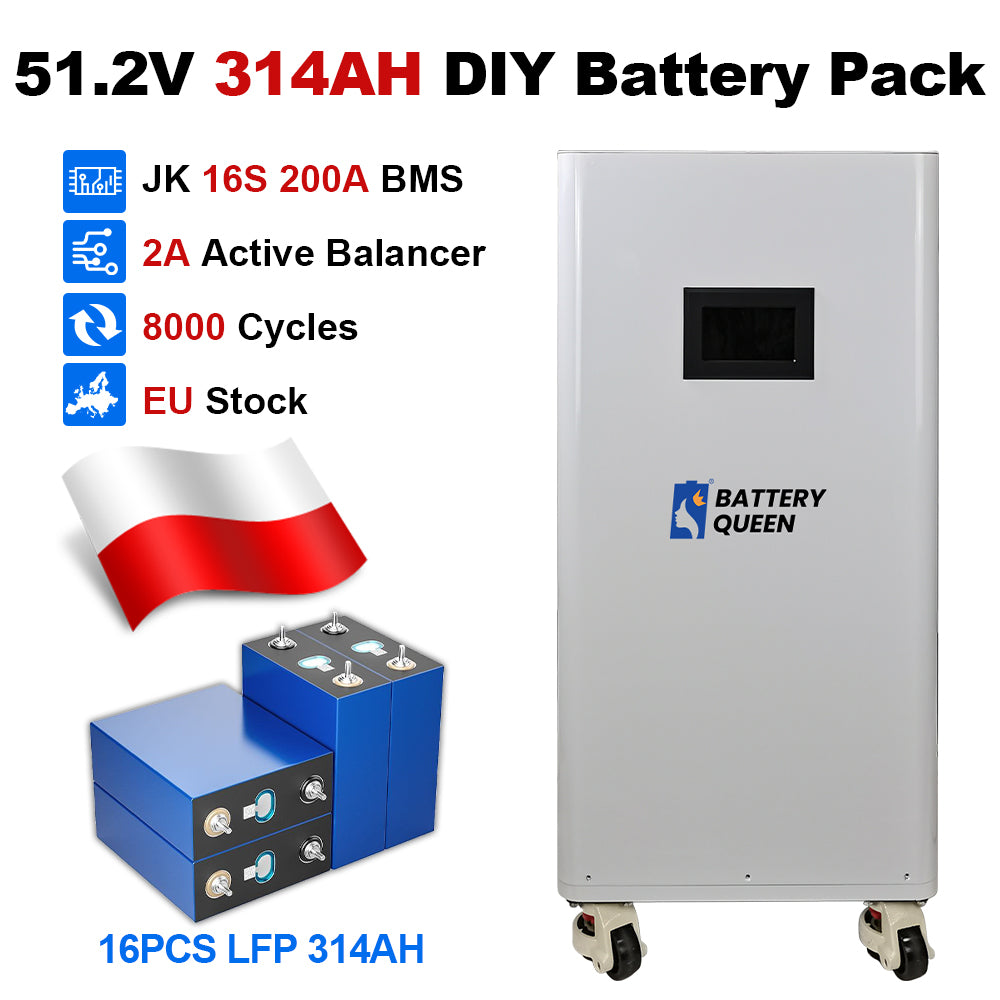

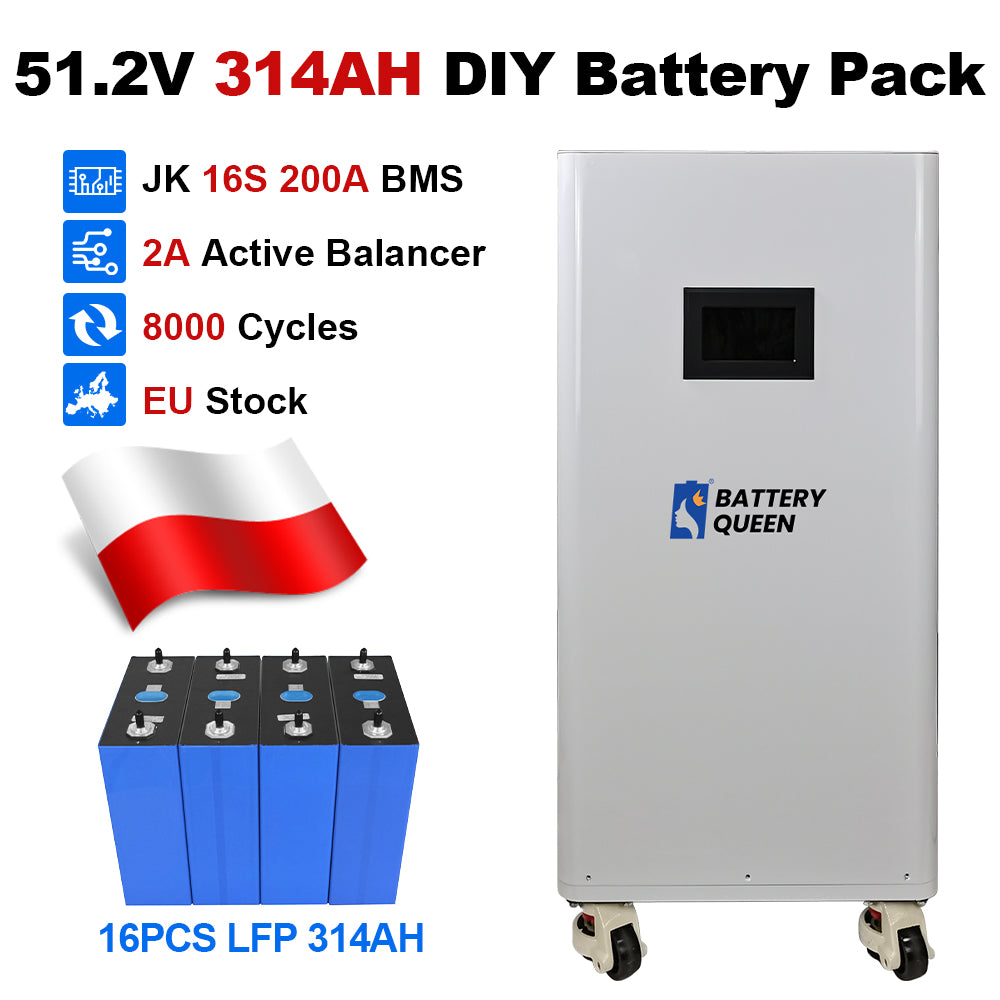

51.2V 320AH DIY LiFePO4 Battery Pack with JK Smart BMS

  1. High Energy Capacity: With a capacity of 314AH, the battery pack provides a long-lasting power supply, making it ideal for applications requiring extended runtime, such as solar energy storage, electric vehicles, or off-grid systems.

  2. Customizable and Scalable: As a DIY project, the 48V battery pack allows for customization in terms of battery type (e.g., lithium-ion, lead-acid), configuration, and size, enabling users to tailor the pack to their specific energy needs and applications.

  3. Cost-Effective Solution: Building your own 48V 314AH battery pack can be more economical compared to purchasing pre-made commercial options, especially when sourcing batteries in bulk or repurposing existing batteries.

Configuration            1P16S
Nominal Voltage              51.2V
Nominal Capacity (Ah) 280Ah @ 0.5C discharge current, 25±2℃
Nominal Power (Wh) 14.3kWh

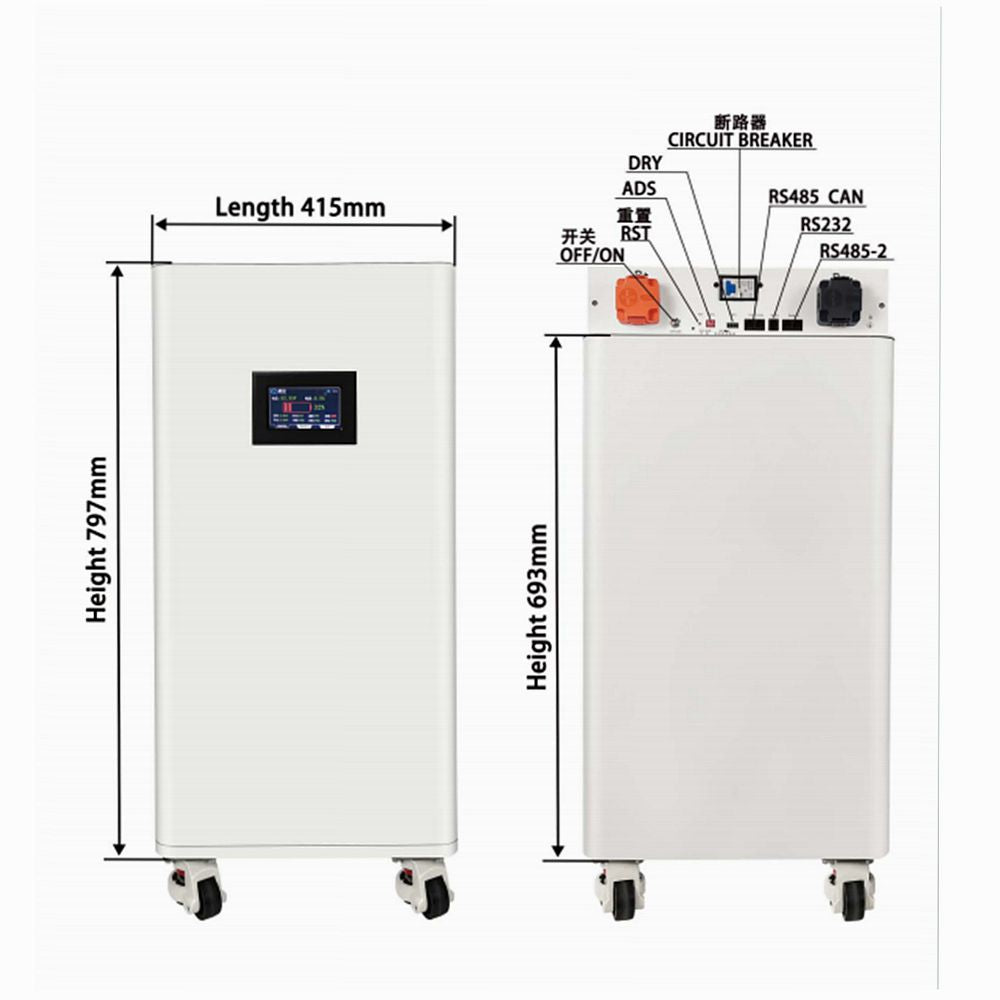

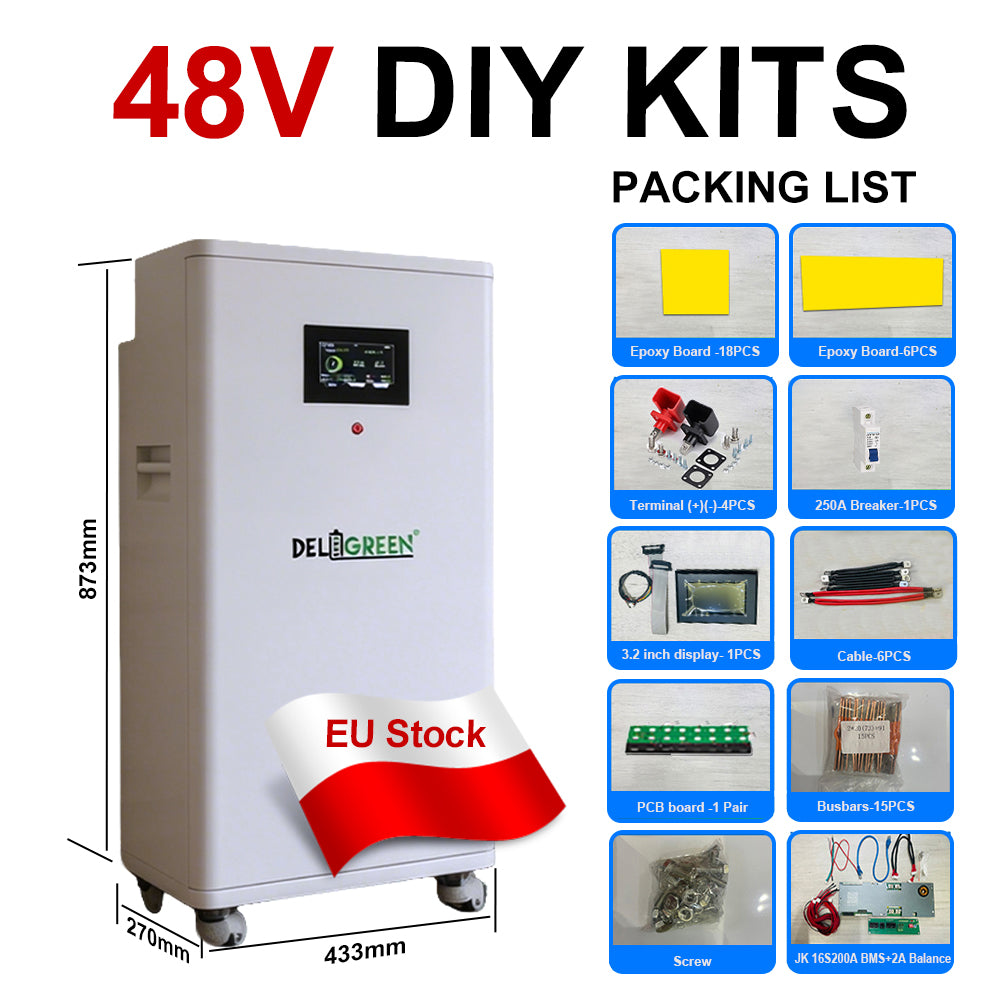

Dimension (mm)  817×412×267mm
Weight (kg) DIYBOX=28.5KG
DIYBOX with cells=112±5kg
Discharge Cut-off Voltage (V） 41.6V
Charge Voltage (V) 57.6V
Continuous Charge
Discharge Current (A)		 140A @ 25±2℃ (Recommended)
 200A @ 25±2℃ (Max Standard)
Working Temperature Charge: 0-50℃
Discharge: -10-50℃
Storage: -20-55℃
SOC Range 5%-100%
Recommended SOC Range 15%-95%
Communication Interface  BT/ CAN / RS485
Humidity 10%-85%
IP Level  IP20

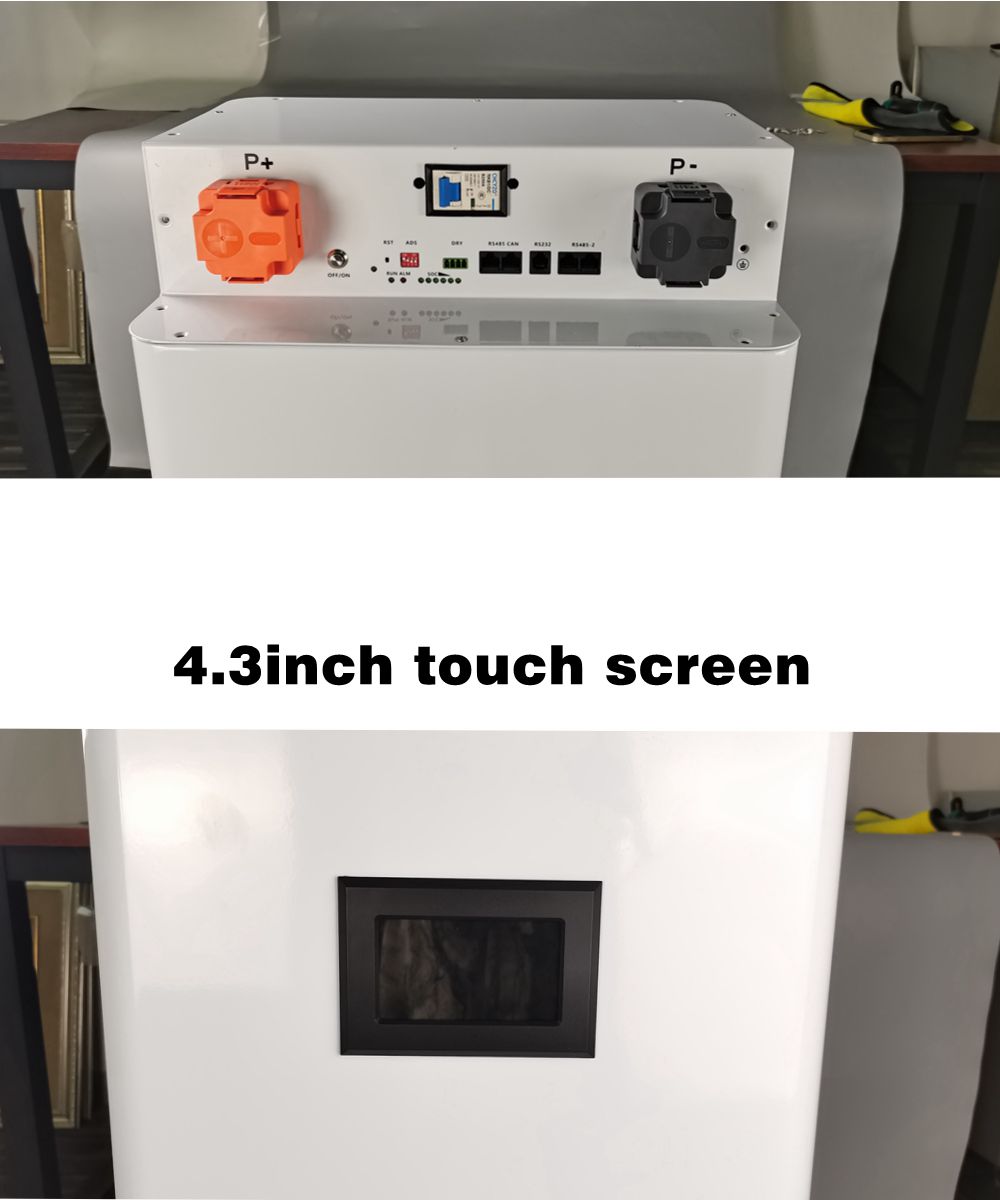

  • Intelligent Display: Integrated screen for real-time monitoring and control.
  • User-Friendly Design: Streamlined interface for seamless operation.
  • Safety First: Circuit breaker for overload protection.
  • Diagnostic Port: Dry contact (DRY) and analog signal (ADS) inputs.
  • Communication Ports:  RS485 CAN
  • Power Control: Orange ON/OFF switch for quick access.

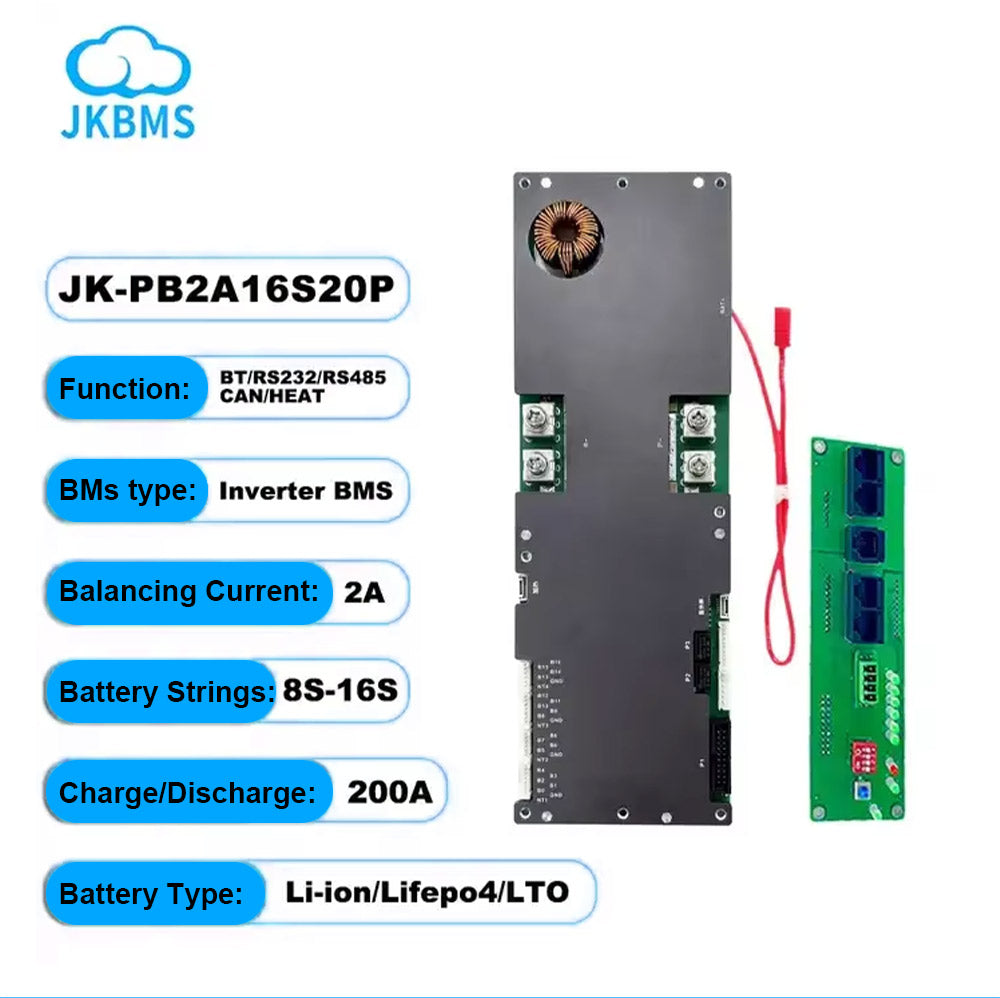

  • Enhanced Battery Life: Through cell balancing and temperature management, the BMS helps to prolong the lifespan of your battery pack, reducing the need for frequent battery replacements and saving costs in the long run.
  • High - Performance Operation: The high - current charge and discharge capabilities, along with reliable communication interfaces, ensure that your power system can operate at its optimal level, whether in continuous or intermittent use.
  • Flexibility: Its compatibility with multiple battery types and support for a wide range of battery string configurations make it suitable for a variety of applications, from small - scale renewable energy systems to large - scale industrial power solutions.
  • Easy Monitoring and Control: The multiple communication options allow for convenient remote or local monitoring and control of the battery pack, enabling you to keep track of its status and make timely adjustments.



EU Warehouse Stock - Battery Model

Learning and DIY Experience

Creating a 48V 314AH DIY Battery Pack is a rewarding hands - on project. It provides an opportunity to learn about battery technology, electrical circuits, and power management systems. Through the process of assembling and testing the battery pack, you gain practical knowledge and skills that can be applied to other DIY electronics projects. It also allows you to troubleshoot and solve problems independently, enhancing your understanding of how different components interact and work together in a power system.
