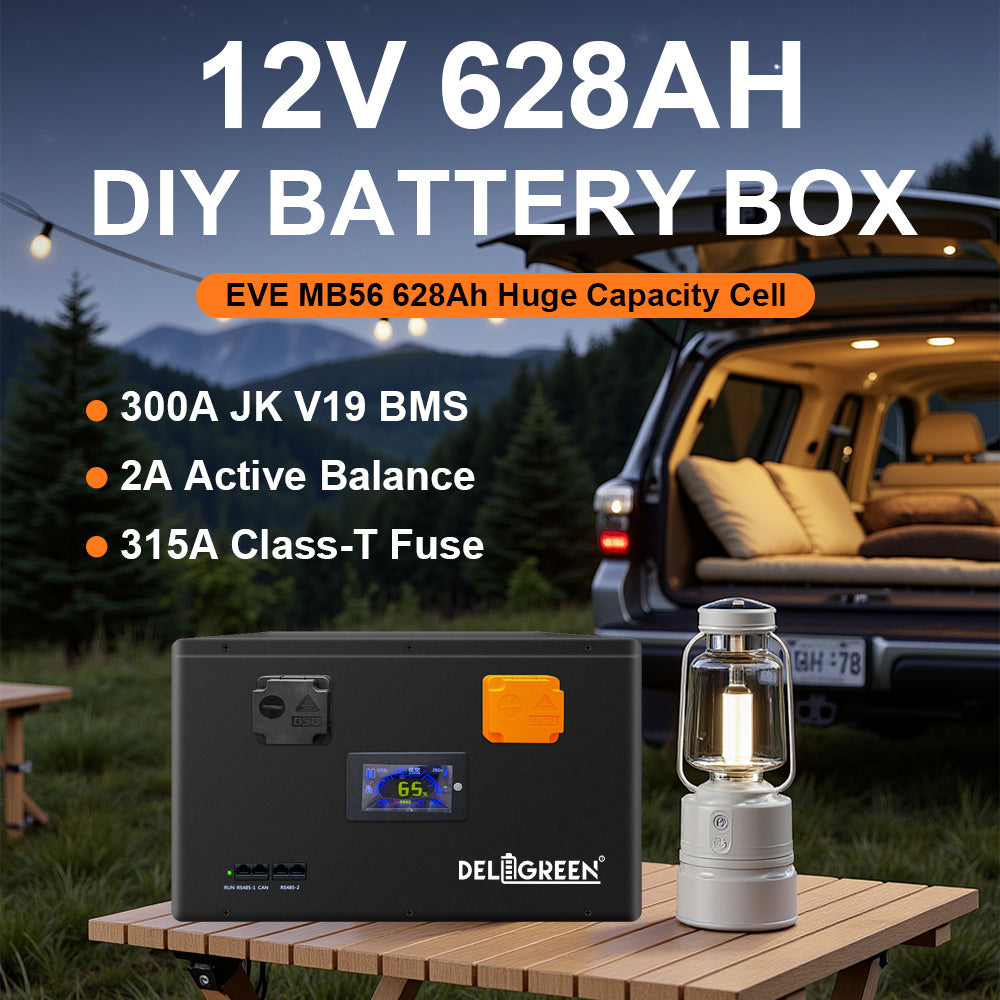

Are you looking for a reliable, high-capacity battery solution for your off-grid system, RV, marine application, or solar project? Look no further! Our 12V 628AH DIY Battery Pack is engineered to deliver exceptional performance, safety, and longevity.
Key Features at a Glance:
-
Cell Type: LiFePO4 (Lithium Iron Phosphate)
-
Nominal Voltage: 12.8V
-
Battery Cell: Compatible with EVE 628AH cells
-
Configuration: 4S 1P
-
BMS: JK-B2A8530P Smart BMS with 300A continuous current
-
Maximum Instantaneous Current: 600A
-
Balancing Current: 2A
-
Communication: RS485 / CAN
-
Parallel Capability: Yes, up to 16 units
-
Series Connection: Not supported
-
Operating Temperature: -30°C to 70°C
-
Dimensions: 390mm (L) x 365mm (W) x 245mm (H)
-
Weight: Approx. 15kg
Why Choose This Battery Pack?
🔋 High Capacity & Long Life
With a massive 628AH capacity and built using premium LiFePO4 chemistry, this battery offers thousands of cycles, ensuring reliable power for years to come.🛡️ Advanced BMS Protection
The JK 300A Smart BMS provides comprehensive protection including overcharge, over-discharge, short circuit, and temperature control. It also supports real-time monitoring via RS485 or CAN communication.🔧 DIY-Friendly Design
Ideal for DIY enthusiasts, this battery pack is designed for easy assembly and integration. The clear 4S1P configuration and standardized terminals make installation straightforward.📈 Scalable Power
Need more power? Connect up to 16 units in parallel to scale your energy storage without compromising performance or safety.🌍 Rugged & Reliable
Built to operate in harsh environments, this battery performs reliably from -30°C to 70°C, making it perfect for both indoor and outdoor applications.
Whether you're building a custom power system or upgrading an existing one, this 12V 628AH DIY battery pack offers the perfect blend of capacity, safety, and smart control.
